Documentation and Support

Print version in PDF format

The TextGridLab offers an integrated online help system which can be opened en bloc or searched by keywords as well as a context-sensitive help.

Static Help

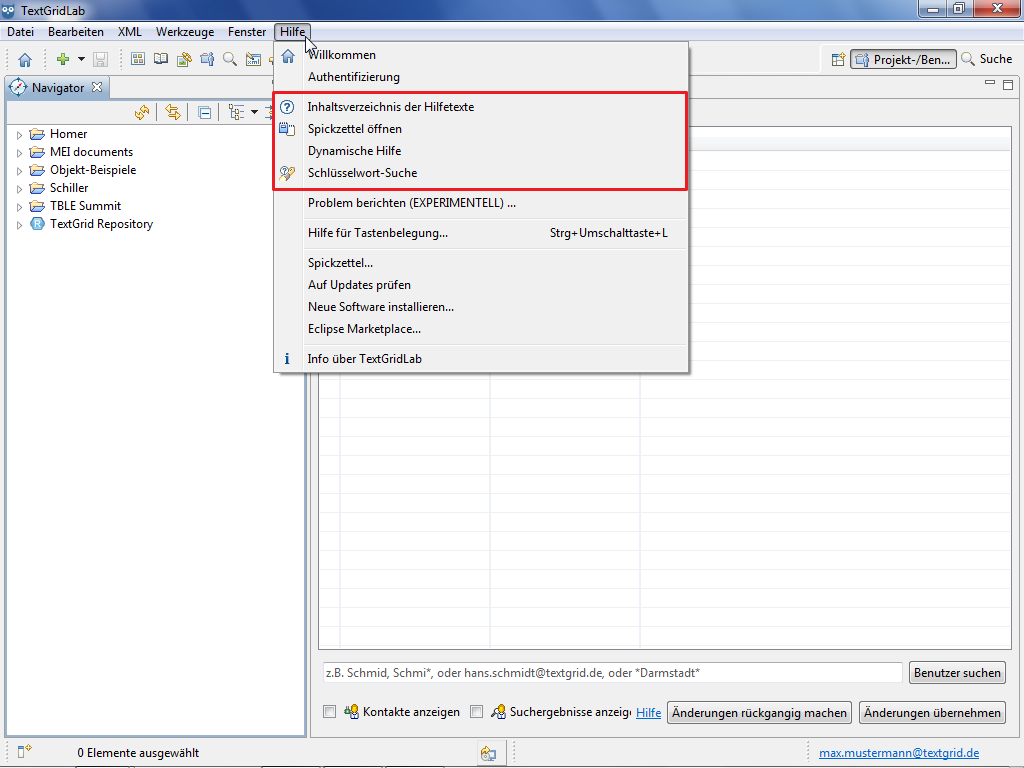

The general help not referring to a specific tool can be opened in the menu bar under Help. There you can select between the categories

•  Help Contents
•  Open Cheat Sheets
•      Dynamic Help
•  Keyword Search

The current version of the User Documentation and the Technical Documentation for developers are available in the TextGrid-/Dariah-Wiki at: https://dev2.dariah.eu/wiki/display/TextGrid/Main+Page.

Help Contents

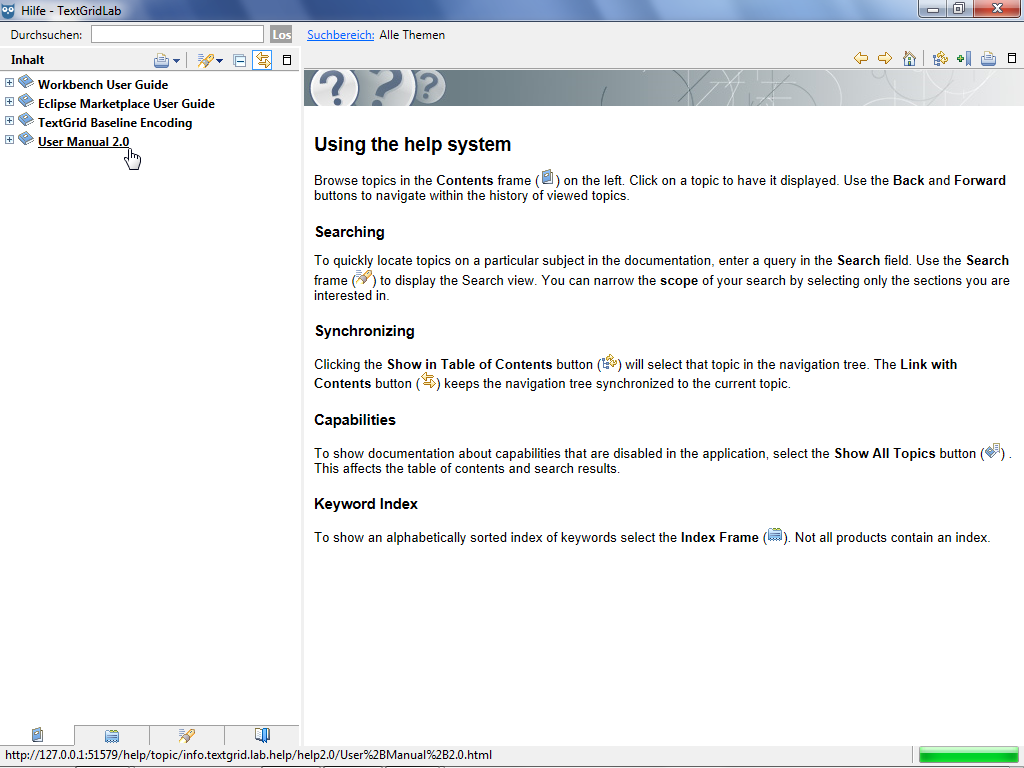

If you choose "Help > Help Contens" in the menu bar, a separate window opens containing several Eclipse-related documentations, including the TextGrid User Documentation. The window is subdivided into two parts comparable to views. Dependant on the selected tab, the left view shows tables of contents, search indices, search results or bookmarks and provides a variation of functions. The right view shows the help content selected on the left.

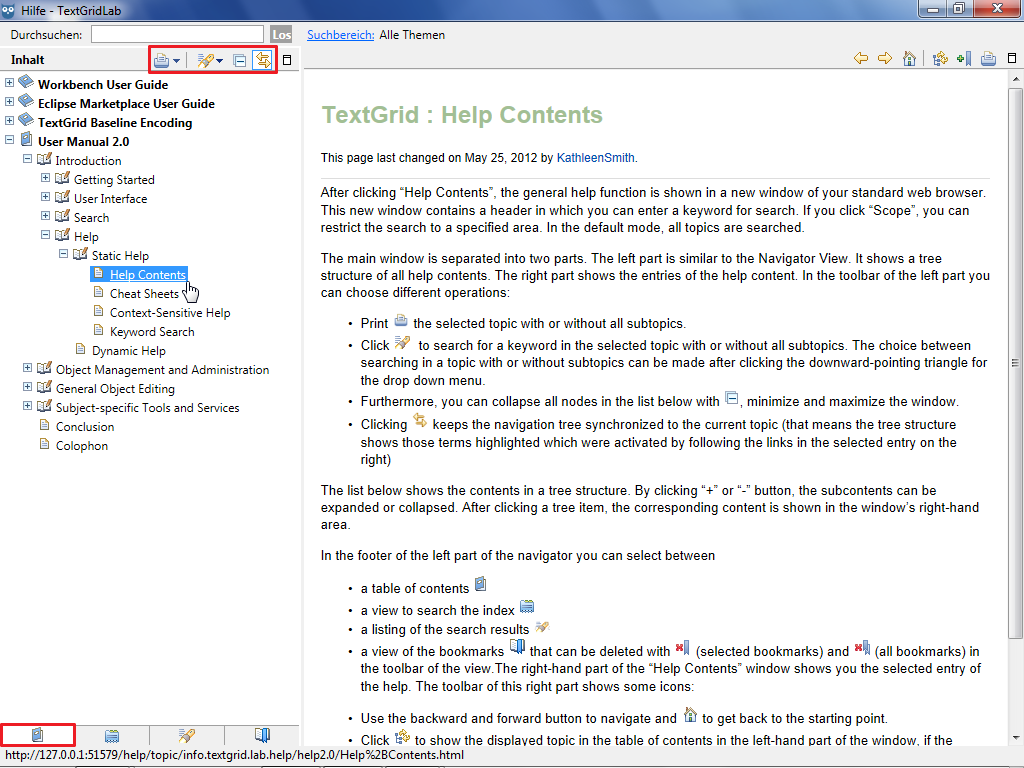

In the table of contents () you can print a selected topic optionally with or without all of its subtopics by clicking  . With the search function you can search selected topics optionally with or without all of its subtopics by clicking , too. By clicking  you can collapse all documentations, by activating  you can keep the navigation tree in the left view synchronized to the text displayed in the right view. That means if you click a link to a help page on the right, the corresponding position in the navigation tree on the left is highlighted.

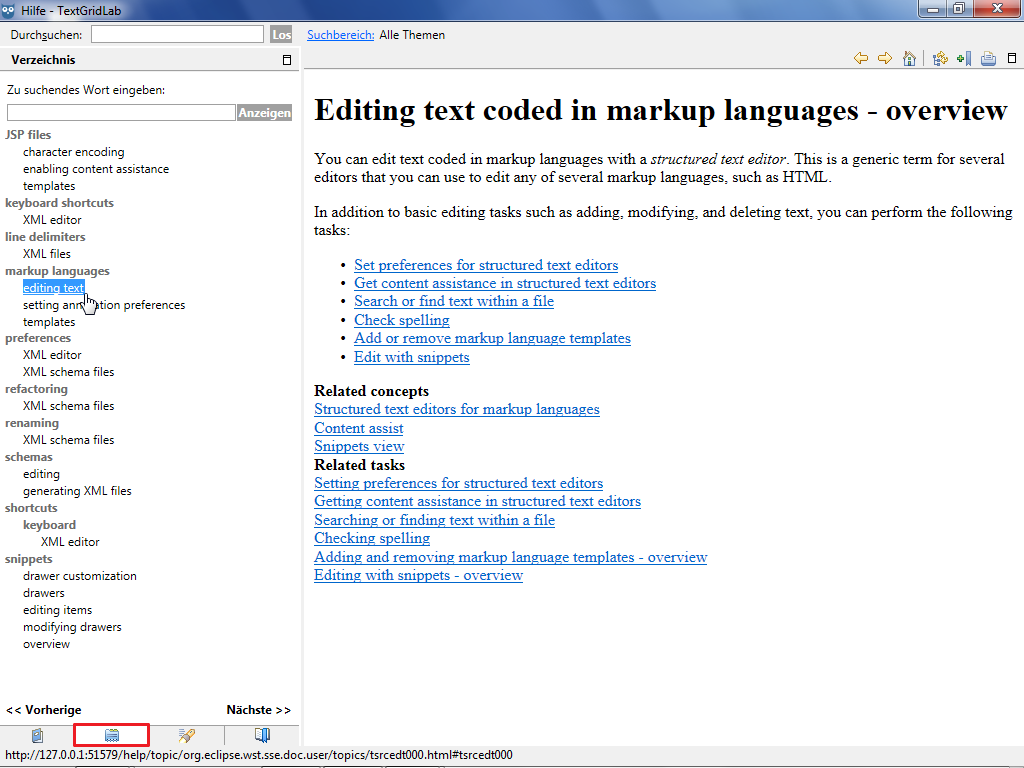

The second tab contains an index you can search.

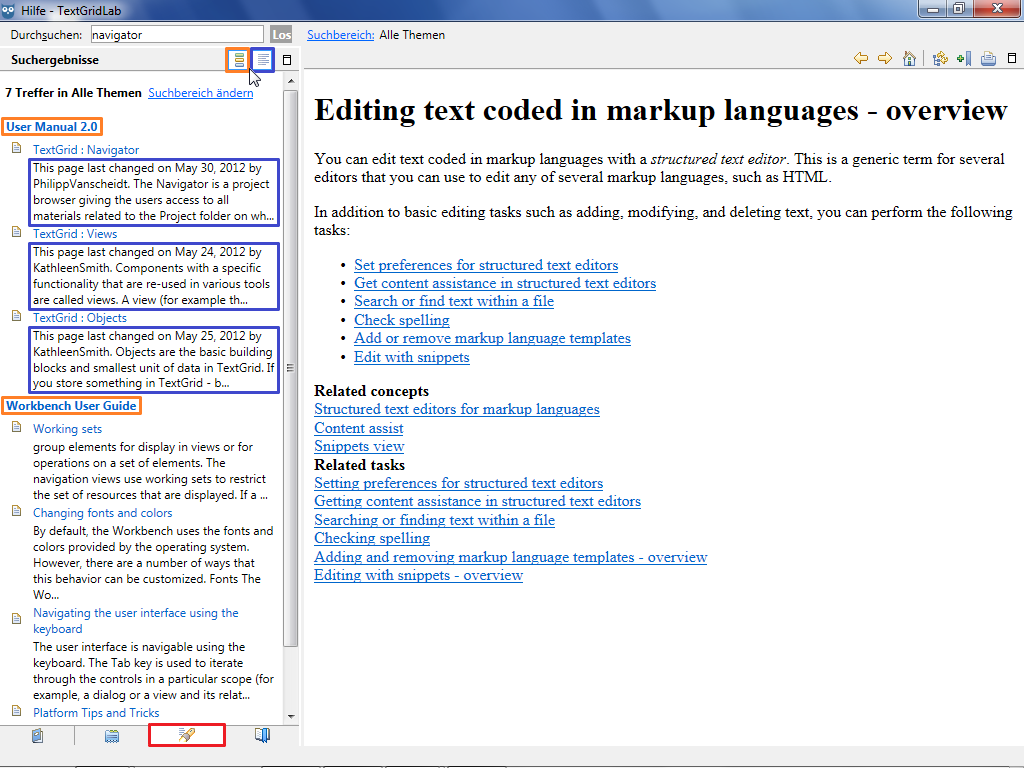

The search results of the third tab can be processed using the buttons in the tool bar. By clicking  the result categories (highlighted in orange) can be (de-)activated, by clicking  the result descriptions (highlighted in blue) can be shown or hidden.

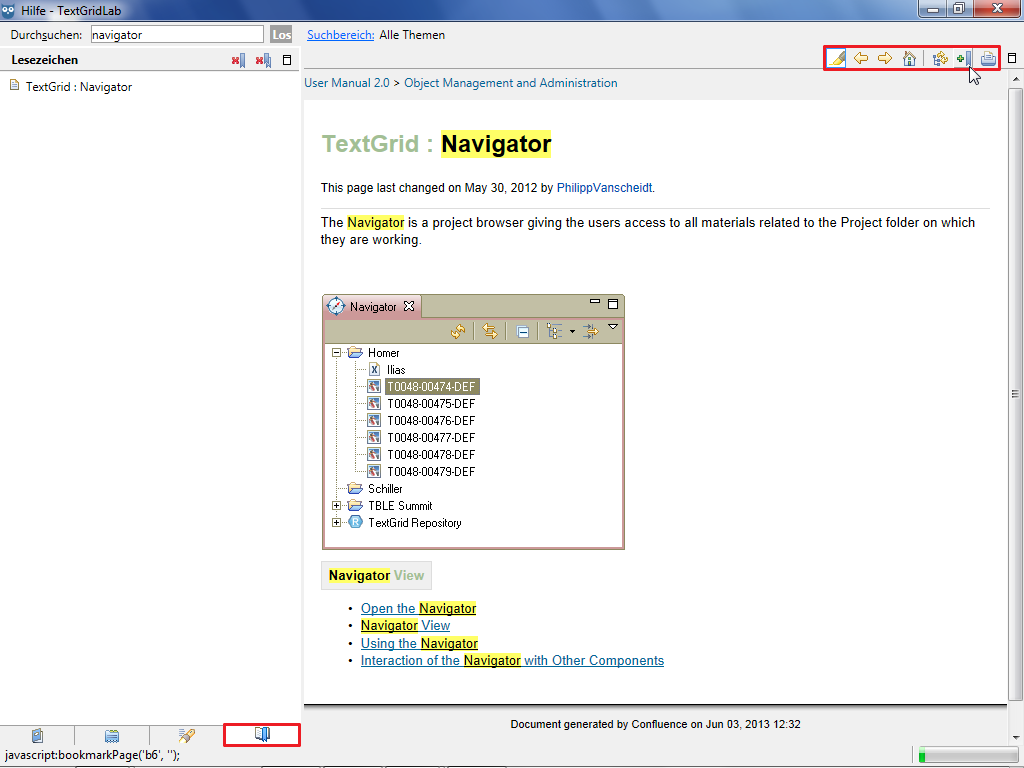

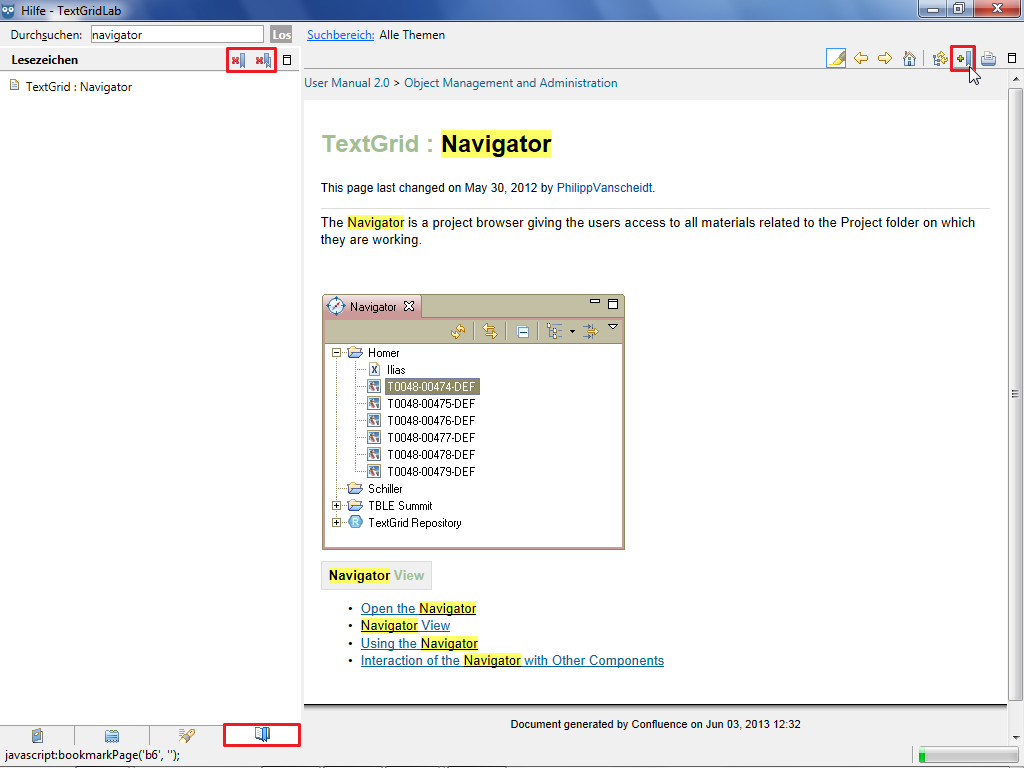

Behind the fourth tab you can manage your bookmarks () within the help system, that you have created in the right part by clicking  . You can delete one or all bookmarks by clicking the corresponding buttons ( und ).

In the right view you can select help pages via their links and navigate using the  and  buttons, by clicking  you can get back to the starting point. By clicking  you can print the page that is currently displayed.

Cheat Sheets

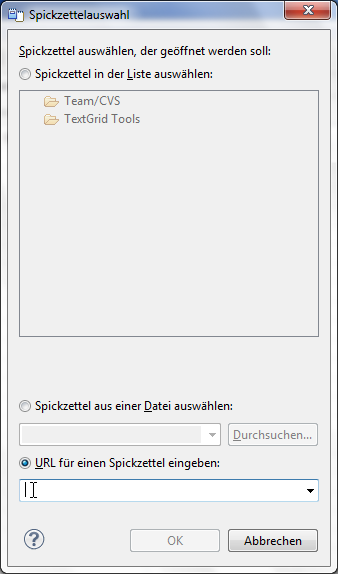

Cheat Sheets can be designed to help users complete a particular task by providing them a list of detailed descriptions of each steps. Currently no Cheat Sheets are provided for the TextGridLab. You have the possibility though to select Cheat Sheets from a local file or a URL. Further information can be found at http://help.eclipse.org/indigo/index.jsp?topic=/org.eclipse.platform.doc.user/reference/ref-chestsheets.htm .

Keyword Search

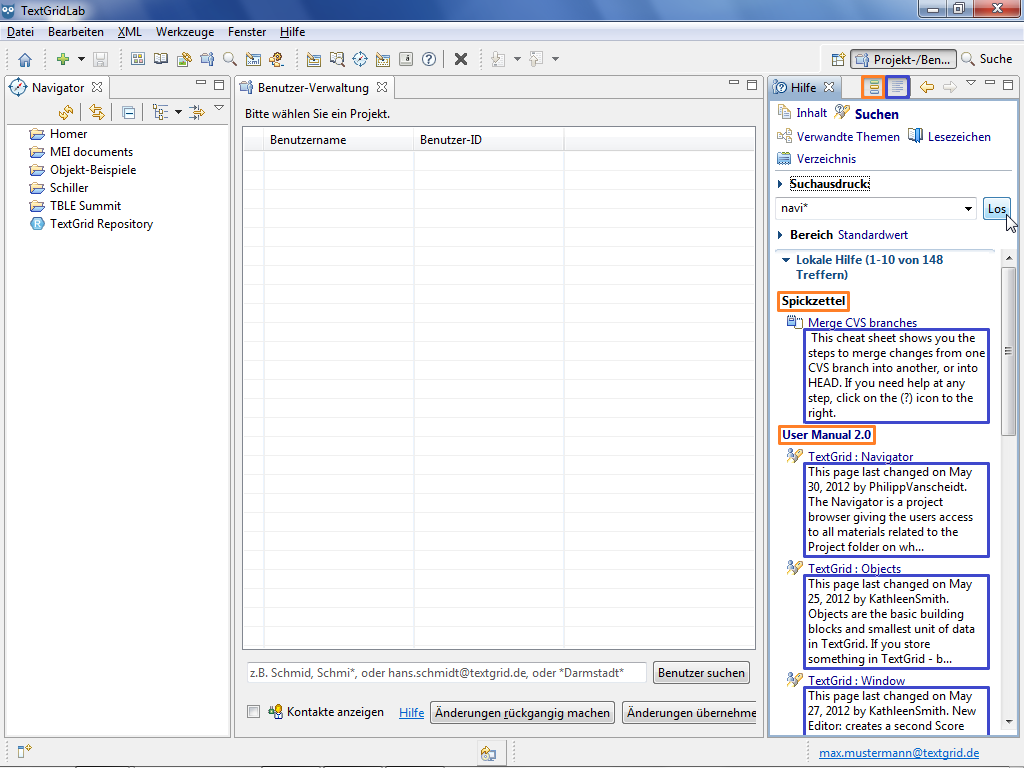

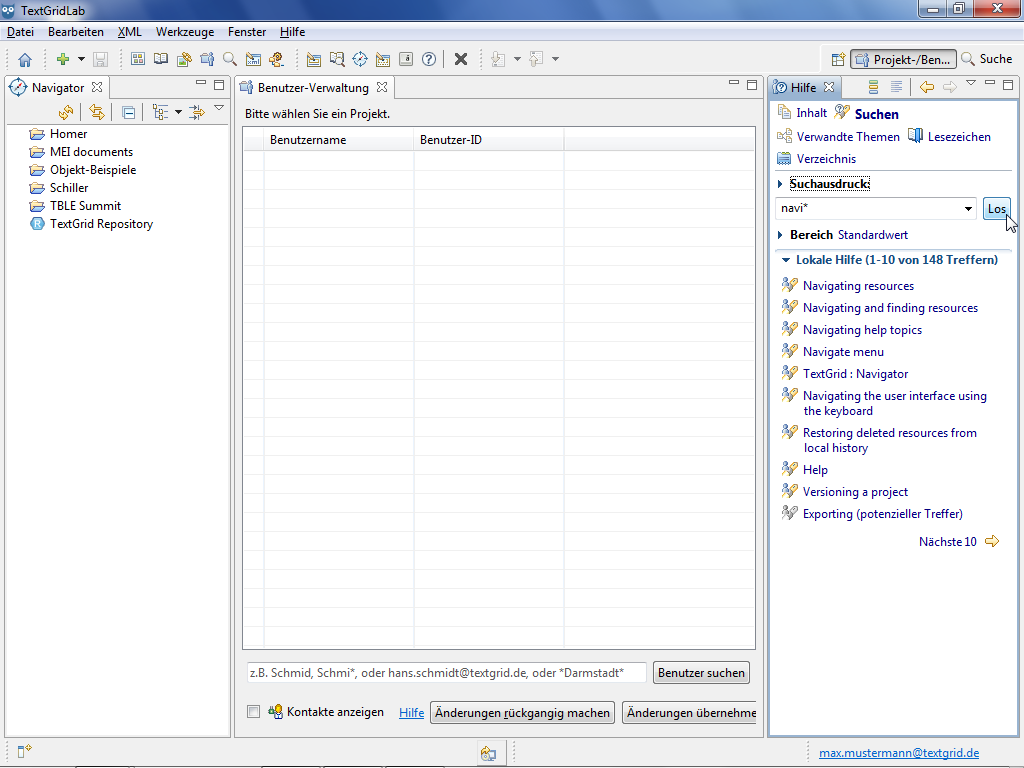

In the Keyword Search you can enter one or more search words in the input box "Search expression" and start the search by clicking "Go". In the Search wildcards can be used with * replacing any string, ? any single character. Quotation marks can be used to demarcate a phrase, the use of logical operators (AND, OR and NOT) is feasible as well.

The search results can be processed similarly to the Help Contents using the buttons in the tool bar of the Help View. By clicking  the result categories (highlighted in orange) can be (de-)activated, by clicking  the result descriptions (highlighted in blue) can be shown or hidden. Similar to other components of the help system you can also select help pages via their links and navigate the Keyword Search by using the  and  buttons.

Dynamic Help

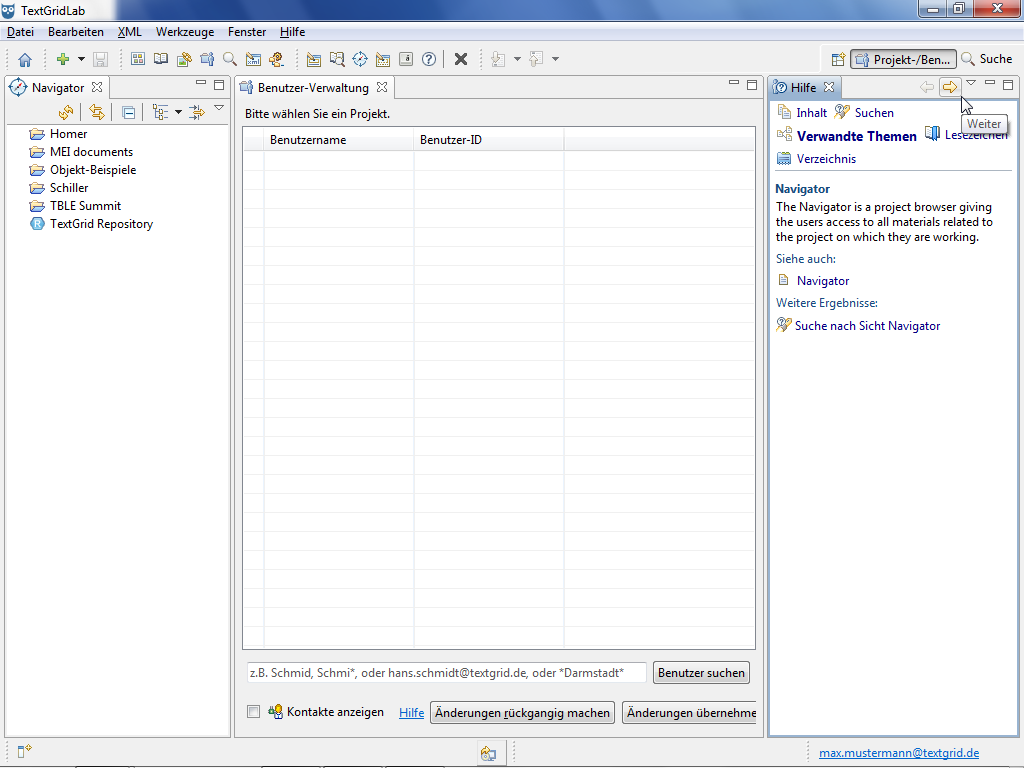

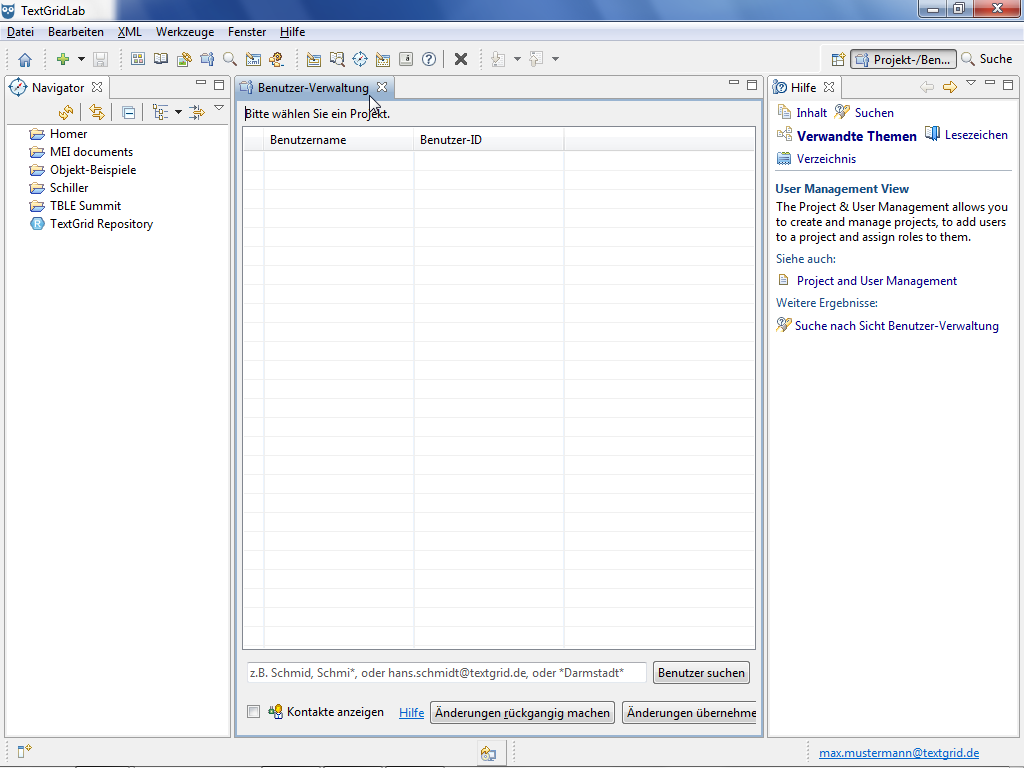

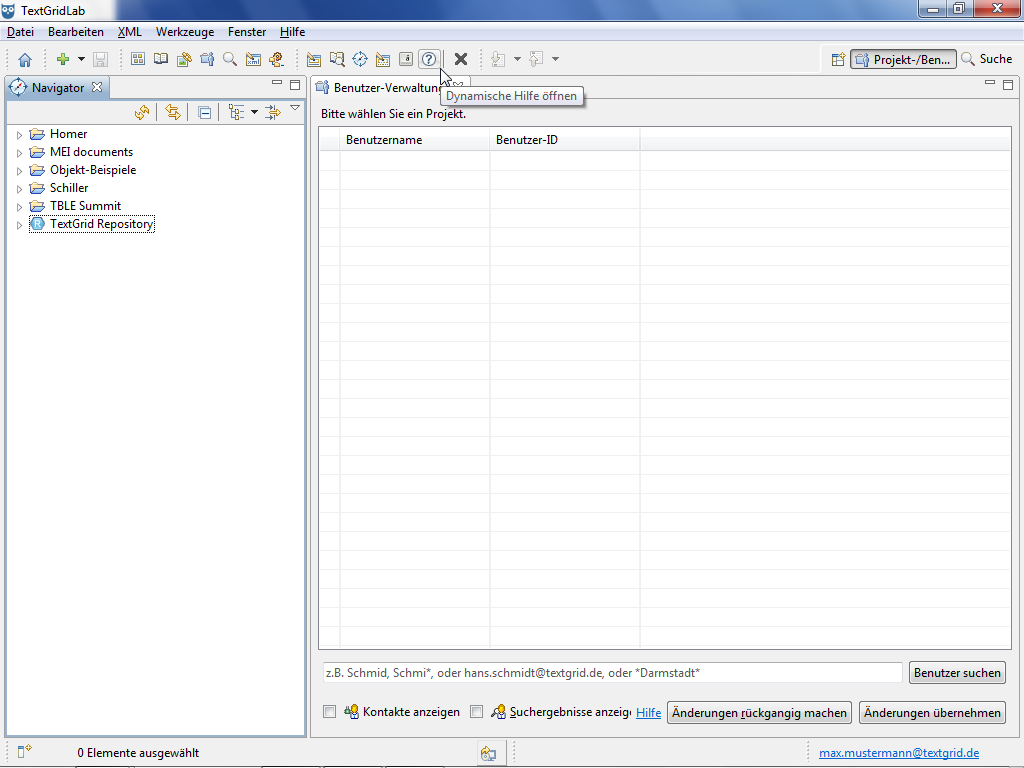

The Dynamic Help is a context-sensitive Help View, which allows you to access the help pages of the lastly selected view easily. To open the Dynamic Help, you can choose "Help > Dynamic Help" in the menu bar or click  in the tool bar.

Similar to other components of the help system you can also select help pages via their links and navigate the Dynamic Help by using the  and  buttons.

If you change to another view of the TextGridLab, the content of the Help View automatically adapts to the new view simultaneously.

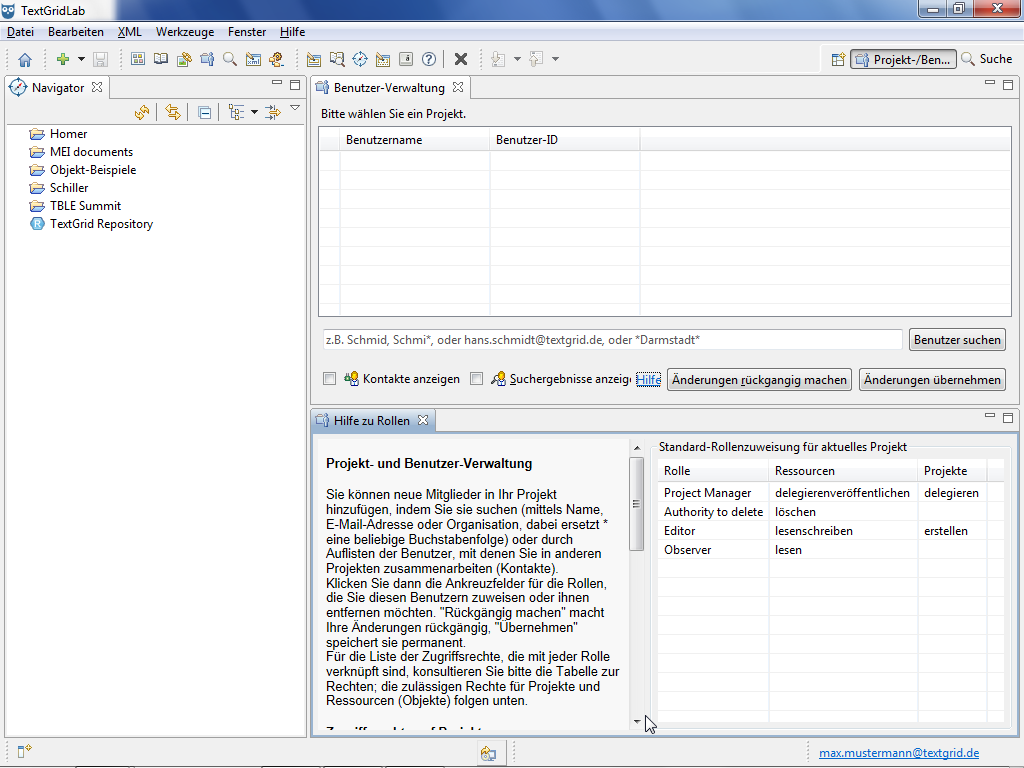

In addition, you can open a help page concerning roles and corresponding rights by clicking the word "Help" at the bottom of the User Administration View.

Support

Bug reports can be posted and observed via the issue tracking system.

If you have any questions, feel free to contact us: textgrid-support@gwdg.de
